Precision centrifuges can be used for dynamic and static research experiments, production debugging, and maintenance calibration of accelerometers, fiber optic gyroscopes, MEMS gyroscopes, and IMUs, providing high acceleration excitation for inertial navigation platforms. The accuracy of accelerometers and gyroscopes has a significant impact on the accuracy of inertial navigation platforms. The centrifuge we developed generates an acceleration field in the instrument compartment through the high-speed rotation of the main shaft, thereby simulating the acceleration environment during the use of inertial devices.
Parte não, :
T1G200CFPedido (quantidade mínima) :
1Product Series and Parameters
| Parameter | T1G200CF |
| Structural type | Vertical |
| Table size (diameter) | φ600 |
| Maximum load weight | 5kg (Optional） |
| Table jumping | 0.02mm |
| Range of centrifuge force | 1~500g |
| Acceleration accuracy | Within 1~10g, 5x10-4 |
| Within 10~500g, 5x10-5 | |
| G value standard uncertainty | Within 1~10g, 5x10-4 |
| Within 10~500g, 2x10-5 | |
| Starting time | ≤30s |
| Spindle verticality | ±1″~± 5″ |
| Resolution | 0.36″ |
| Communication interface | RS422/RS232/Ethernet (optional) |
| Temp chamber | Optional |
Production process

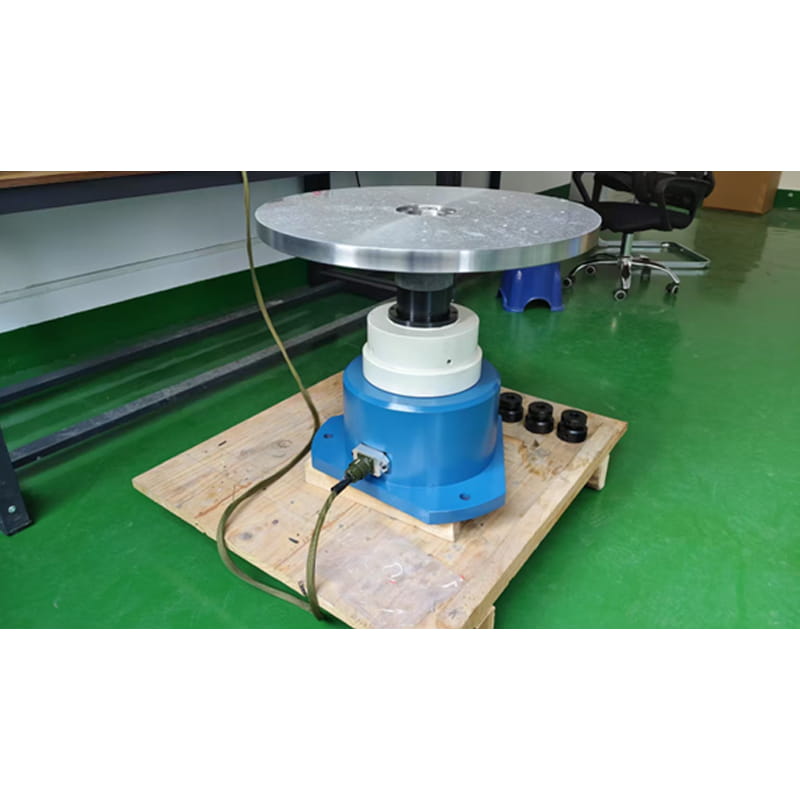

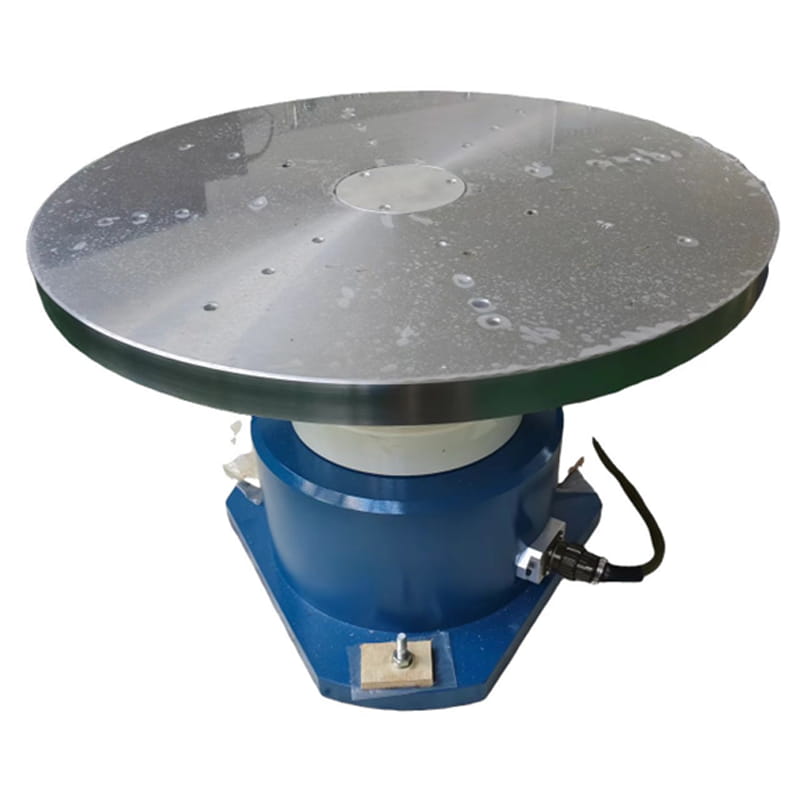

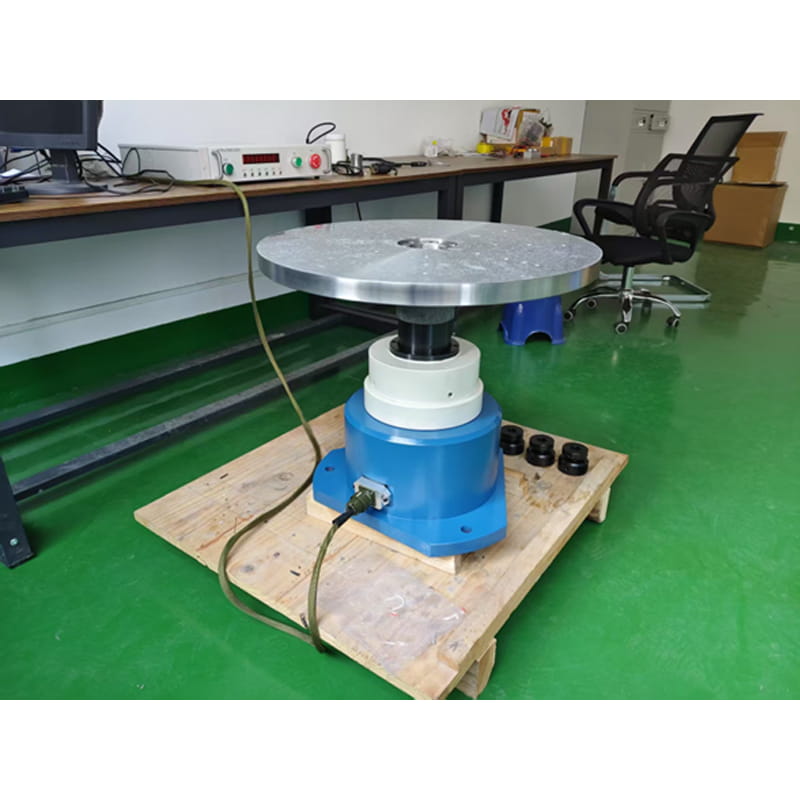

Product Pictures
Application Scenarios
FAQ
