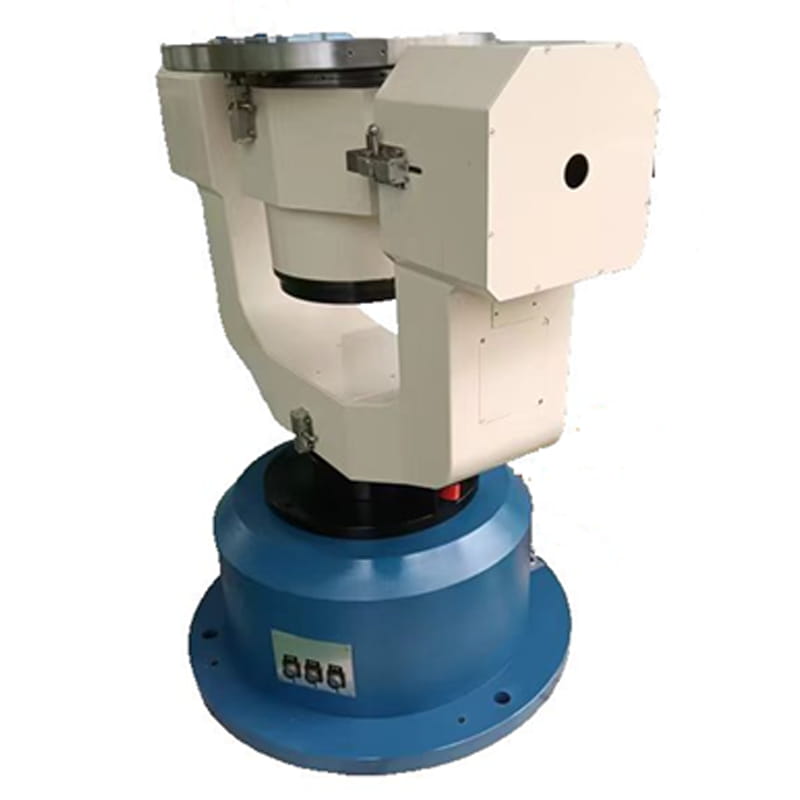

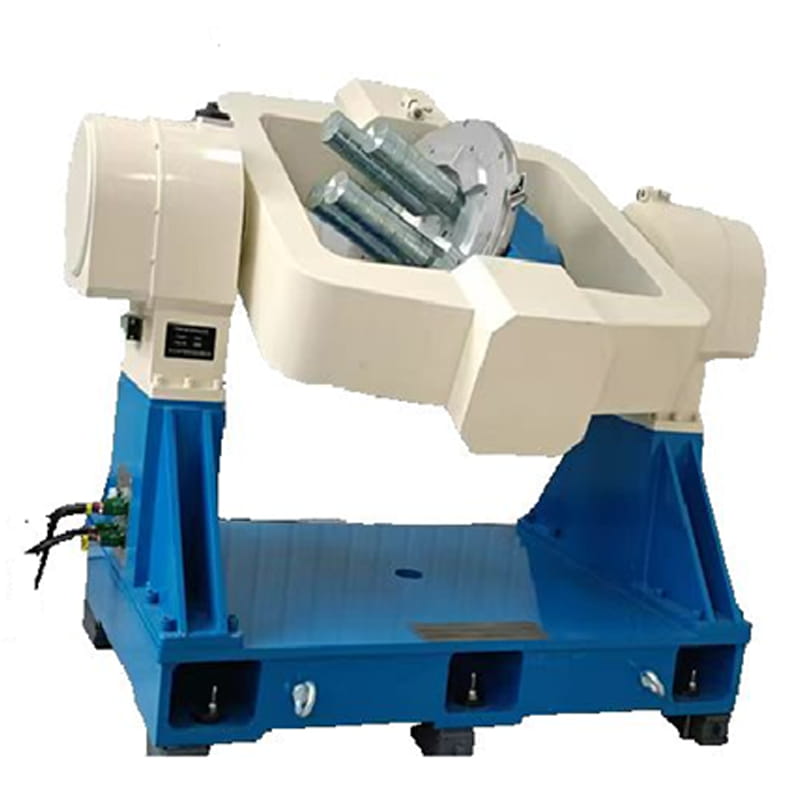

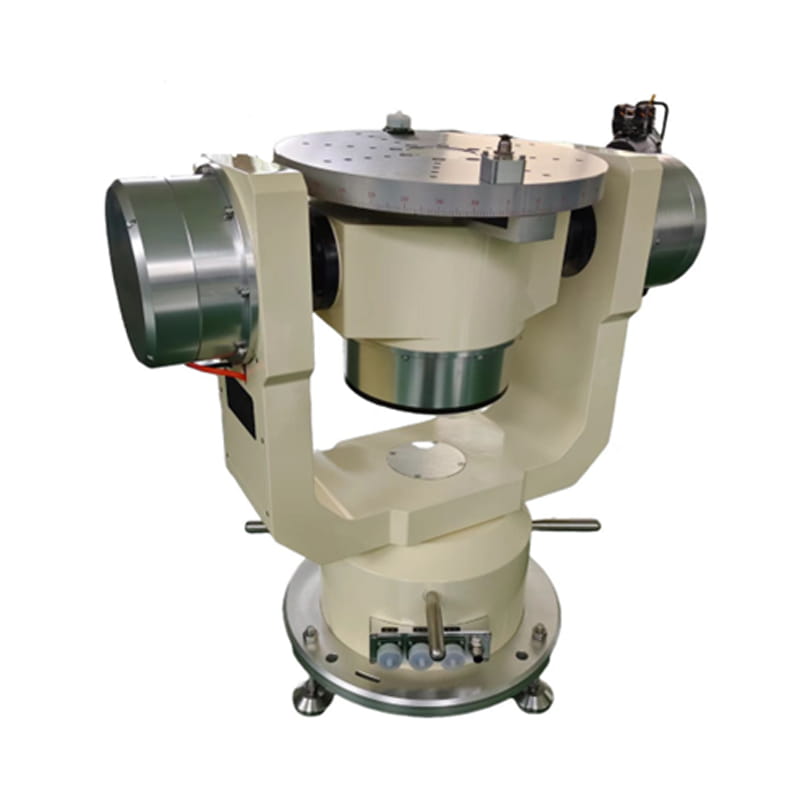

The three-axis turntable is divided into table type and frame type, which can be used to provide motion excitations such as angular position, angular velocity, angular acceleration, and flight simulation for dynamic and static attitude simulation testing of the tested object. It can also be used for accuracy calibration of the tested object.
Parte não, :
T3G360PR-3、T3G500PR-3、T3G500PR-3T、T3G300PR-3、T3G450PR-3Pedido (quantidade mínima) :
1Product Series and Parameters
| Parameter | T3G360PR-3 | T3G500PR-3 | T3G500PR-3T | T3G300PR-3 | T3G450PR-3 |
| Structural type | U-T tabletop style | U-T tabletop style | U-T frame type | U-0-0 frame type | U-0-0 frame type |
| Table size | φ360 | φ500 | φ500 | φ300 | φ450 |
| Maximum load weight | 5~40KG | 5~40KG | 5~40kg | 5kg~40KG | 5~40kg |
| Mesa flatness | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Table jumping | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Rotation accuracy | Inner ring: ±3~± 10″ Central ring: ±3~±10″ Outer ring: ± 3~± 10″ |
Inner ring: ±2~± 10″ Central ring: ±3~±10″ Outer ring: ± 4~± 10″ |
Inner ring: ±2~± 10″ Central ring: ±3~±10″ Outer ring: ± 3~± 10″ |
Inner ring: ±2~± 10″ Central ring: ±3~±10″ Outer ring: ± 3~± 10″ |
Inner ring: ±2~± 10″ Central ring: ±3~±10″ Outer ring: ± 3~± 10″ |
| Angular position | 0~360° | 0~360° | 0~360° | 0~360° | 0~360° |
| range | continuous rotation | continuous rotation | continuous rotation | continuous rotation | continuous rotation |
| Angular position accuracy | Inner ring: ±5~± 10″ Central ring: ±5~±10″ Outer ring: ± 5~± 10″ |
Inner ring: ±3~± 10″ Central ring: ±4~±10″ Outer ring: ± 3~± 10″ |
Inner ring: ±3~± 10″ Central ring: ±5~±10″ Outer ring: ± 5~± 10″ |
Inner ring: ±3~± 10″ Central ring: ±5~±10″ Outer ring: ± 5~± 10″ |
Inner ring: ±3~± 10″ Central ring: ±5~±10″ Outer ring: ± 5~± 10″ |
| Repetitive angular position | Inner ring: ±3~± 7″ Central ring: ±3~±7″ Outer ring: ± 3~± 7″ |
Inner ring: ±2~± 7″ Central ring: ±3~±7″ Outer ring: ±2~± 7″ |
Inner ring: ±2~± 7″ Central ring: ±3~±7″ Outer ring: ±3~± 7″ |
Inner ring: ±2~± 7″ Central ring: ±3~±7″ Outer ring: ±3~± 7″ |
Inner ring: ±2~± 7″ Central ring: ±3~±7″ Outer ring: ±3~± 7″ |
| Angular rate range | Inner ring: 0.001°~500°/s Central ring: 0.001°~400°/s Outer ring: 0.001°~300°/s |
Inner ring: 0.001°~1000°/s Central ring: 0.001°~500°/s Outer ring: 0.001°~200°/s |
Inner ring: 0.001°~1000°/s Central ring: 0.001°~500°/s Outer ring: 0.001°~200°/s |
Inner ring: 0.001°~500°/s Central ring: 0.001°~400°/s Outer ring: 0.001°~300°/s |
Inner ring: 0.001°~500°/s Central ring: 0.001°~400°/s Outer ring: 0.001°~300°/s |
| Angular rate accuracy and stability | (1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
| Maximum angular acceleration | Inner ring: 400°/s² Central Ring: 300°/s² Outer ring: 200°/s² |
Inner ring: 1000°/s² Central Ring: 400°/s² Outer ring: 300°/s² |
Inner ring: 1000°/s² Central Ring: 400°/s² Outer ring: 300°/s² |
Inner ring: 1200°/s² Central Ring: 500°/s² Outer ring: 300°/s² |
Inner ring: 1200°/s² Central Ring: 500°/s² Outer ring: 300°/s² |
| Way of working | Speed, Position, Sway, simulation | Speed, Position, Sway, simulation | Speed, Position, Sway, simulation | Speed, Position, Sway, simulation | Speed, Position, Sway, simulation |
| Slip ring | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) |
| MTBF | ≥2000 | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Bandwidth | Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
| Loading size | φ300*200 | φ500*350 | φ500*250 | φ250*250 | φ400*250 |
| Continuous working hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours |
| Communication interface | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) |
