The Industrial Guardian of Precision Monitoring and Intelligent Warning - ACM1000 Vibration Sensor
Quickly get the product information in one minute

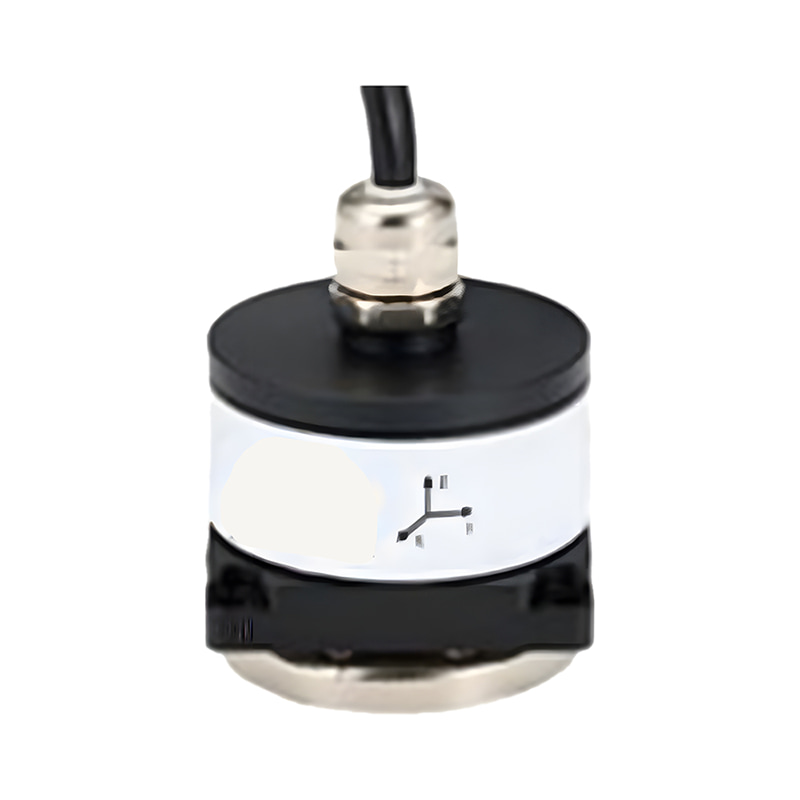

In the field of industrial automation and intelligent monitoring, accurate data collection and reliable equipment status analysis are key to ensuring production safety and efficiency. The ACM1000 digital MEMS vibration sensor launched by Micro-Magic Inc has become an ideal choice in the field of vibration monitoring due to its high precision, multi parameter output, and strong environmental adaptability.
ACM1000 adopts a low-noise, low drift, and low-power three-axis MEMS sensor with high-frequency and low-noise characteristics, which is particularly suitable for high-resolution vibration measurement applications. It can detect machine faults as early as possible in equipment status monitoring applications. The product not only has excellent performance, but also has extremely low power consumption. In addition, this sensor can provide accurate and reliable tilt measurement in high impact and high vibration environments without causing sensor saturation.
The ACM1000 can simultaneously output vibration velocity (0-50mm/s), vibration angle (0-180°), amplitude (displacement 0-30mm), vibration frequency (1-100Hz), and temperature data of three axes (X, Y, Z), fully covering the monitoring requirements of equipment vibration status.
By using digital filtering technology and monocrystalline silicon capacitive sensors, noise interference is effectively reduced, and the measurement accuracy reaches: Vibration speed: ±1mm/s; Vibration angle: ±0.001°/s; Vibration displacement: ± 0.001mm.
Wide temperature range (-40℃~+85℃), suitable for extreme environments. Resistant to 20000g of impact and 10grms of vibration, meeting the requirements of harsh industrial scenarios. Mean time between failures≥45000 hours to ensure stable and reliable system operation.
Supports multiple interfaces such as RS232/RS485/TTL/RS422/CAN, compatible with Modbus protocol. Address codes (0x01~0xFF) can be set, supporting multi-sensor networking and achieving multi-point monitoring. Built in magnetic base and screw mounting holes for easy deployment.
Accurately monitor every vibration, prevent problems before they occur, and help upgrade industrial intelligence. Choose the ACM1000 to equip your equipment with the "Smart Eye"!
